12.1KW Lsr Liquid Injection Molding Machine With Servo System 1 Year Warranty

Minimum Order Quantity : »1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 100 set year
Place of Origin: China Brand Name: TYM
Certification: CE/ISO9001 Model Number: TYM4545

Detail Information

Clamping Force: 130T After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support
Automatic: Yes Injection Rate: 30g/s
Product Name: Liquid Injection Molding Machine 12.1KW Lsr Injection Molding Machines Warranty: 1 Year
Tie-Bars Space: 450*450mm
High Light:

electric injection moulding machine

,

servo injection moulding machine

Product Description

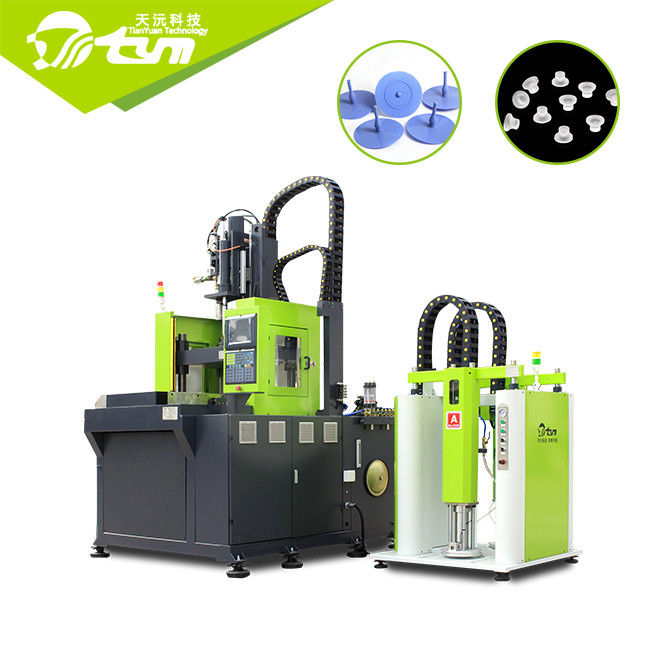

Liquid Injection Molding Machine 12.1KW Lsr Injection Molding Machines



The advantage of TYM Liquid Injection Molding Machine:

1. TYM processional integrated LSR machine-one control panel computer,more efficient,more energy efficient,save more production cost.

2. The servo system-quick response,high precision,and save 60% more electricity compared to the ordinary motor.

3. The direct pressure injection barrel——high precision,portable and easy to change and clean.

4. Static+dynamic mixer to mix the material and color more thoroughly.

5. TYM series computer controller—parameterized setting, mutigroup electronic ruler to monitor,it can achieve the reliability,stability and precision of machine operation.

6. TYM series L4 number control color slurry pump, computer control color slurry input, accuracy up to 0.01 g, the world leader.
12.1KW Lsr Liquid Injection Molding Machine With Servo System 1 Year Warranty 0



Machine Model Parameter



Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force Opening Stroke Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-L4048 270g 30g/s 700kg/cm2 95T 250-550mm 400*480mm 4.3T 150mm 21Mpa 4.7T 12.1KW 2.0*1.5*3.4m
TYM-L5058 148g 30g/s 700kg/cm2 130T 250-550mm 500*580mm 4.3T 150mm 21Mpa 5.3T 12.1KW 2.4*1.6*3.4m
TYM-L6068 270g 30g/s 700kg/cm2 150T 250-550mm 600*680mm 4.3T 150mm 21Mpa 5.5T 12.1KW 2.7*1.7*3.4m




12.1KW Lsr Liquid Injection Molding Machine With Servo System 1 Year Warranty 1

12.1KW Lsr Liquid Injection Molding Machine With Servo System 1 Year Warranty 2



12.1KW Lsr Liquid Injection Molding Machine With Servo System 1 Year Warranty 3



12.1KW Lsr Liquid Injection Molding Machine With Servo System 1 Year Warranty 4

Our Service & Advantages:
1. Reply your enquiry in 24 working hours.
2. More than 17 years experience to LSR injection molding machine in China.
3. Tianyuan can design the LSR injection molding equipment according to the customer's requirements, provide a whole set of solutions for the LSR equipments.
4. Our LSR injection molding machine is widely used in medical industry, food industry, infant industry , diving industry, insulator industry and other LSR production field.
5. According to the high quality, precise and reliable of the LSR injection molding machine, we help the customer to produce the refined LSR products and price ratio is in high performance in the LSR industry.
6. Welcome OEM and ODM.
