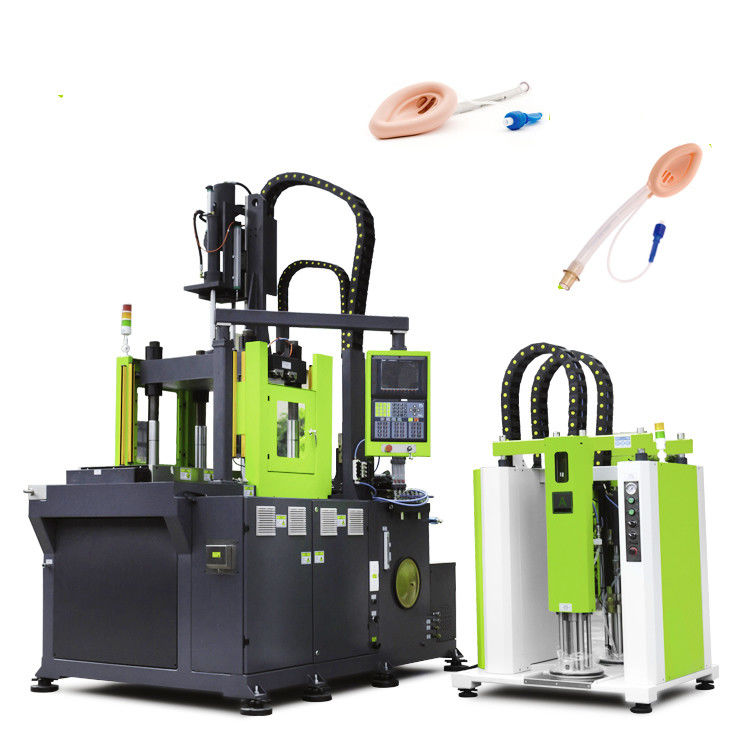

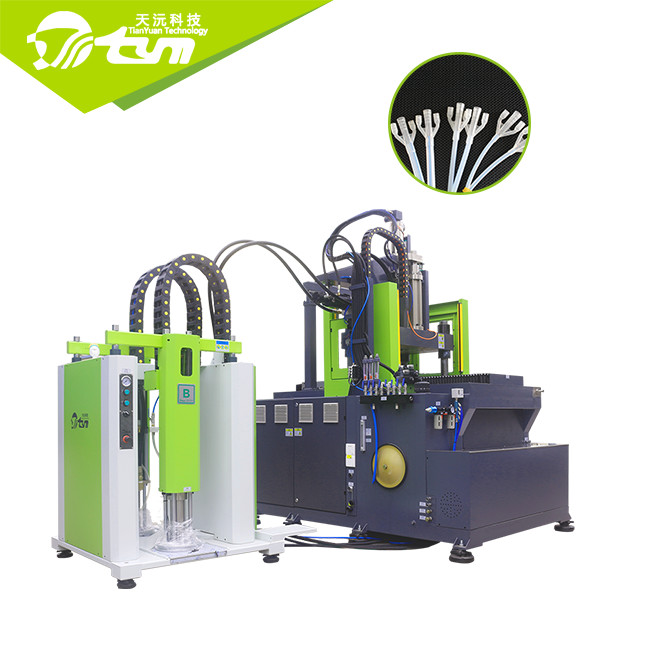

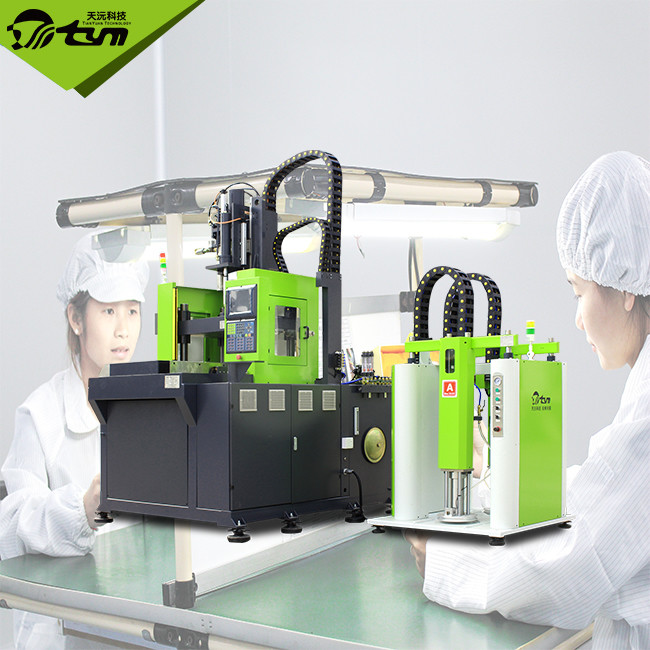

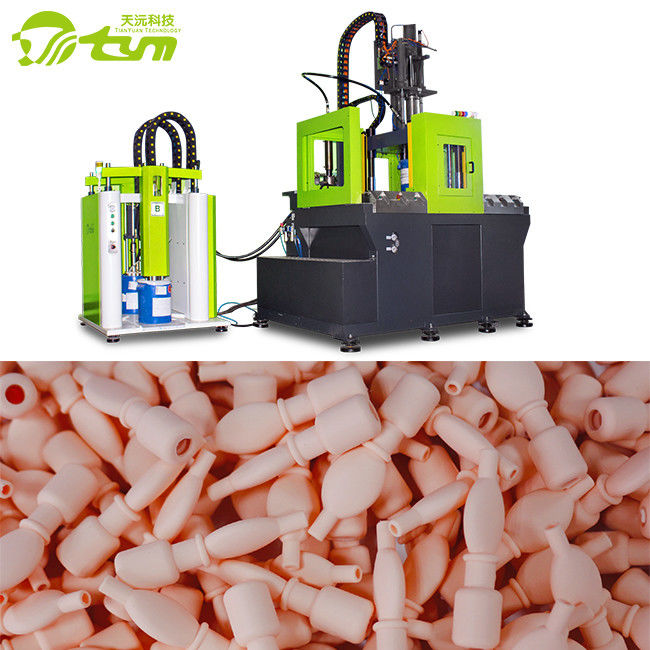

12.1kw Rubber Injection Moulding Machine / Silicone Ballon Making Machine

Minimum Order Quantity : >1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 50 sets per month
Place of Origin: China Brand Name: TYM
Certification: CE/ISO Model Number: TYM-5058

Detail Information

Type: Vertical Certification: CE/ISO For Rubber Injection Moulding Machine Silicone Ballon Making Machine
Product Name: Rubber Injection Moulding Machine Silicone Ballon Making Machine Material: Liquid Silicone Rubber
Power(w): 12.1kw Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
High Light:

injection rubber moulding machine

,

injection molding system

Product Description

Rubber Injection Moulding Machine Silicone Ballon Making Machine


Liquid silica gel medical accessories have many unique properties, such as good physiological inertia, resistance to humoral corrosion, resistance to aging under harsh environmental conditions, no inflammation of human tissues, etc. Therefore, they are widely used in the medical field. Among many medical polymer materials available at present, silicone rubber plays a leading role in quantity and variety.





Machine Model Parameter

TYM-L5058 Vertical LSR injection molding machine
Injection Unit
Shot Volume 165 g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 130 T
Opening Stroke 250-550 mm
Tie-Bars Pace 500*580 mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Others
Pump Pressure 21 Mpa
Motor Power 12.1 KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 6 T
Machine Dimension 2.5*1.6*3.6 m





Liquid silicone medical auxiliary materials can be formed by common rubber processing methods, such as extrusion, impregnation, injection or molding, although the properties of silicone rubber products depend on the silicone rubber raw material or the production method used by the manufacturer. In practical application, the performance of medical silicone rubber products must reach a certain level to ensure the safety and effectiveness in the use process.



In recent decades, the application of medical silicone rubber products has made great progress. As a medical device industry, the performance of medical silicone rubber products, especially its application in clinical medicine, is becoming more and more extensive.

With the improvement of people's living standards and health awareness, the use of medical silicone rubber products will increase.



Liquid silica gel medical accessories have become the most widely used medical polymer materials due to its excellent performance. With the development of silicone industry, medical silicone rubber products will form a market that can not be underestimated, and silicone rubber will play a greater role in the medical field.

12.1kw Rubber Injection Moulding Machine /  Silicone Ballon Making Machine 0
