12.1kw Vertical Silicone Injection Molding Machine Heat Resistance
Contact Person : Angelina
Phone Number : 15918448424
WhatsApp : +8615918448424
| Minimum Order Quantity : | 1 set | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Film | Delivery Time : | 30 days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union | Supply Ability : | 20 Sets per Month |
| Place of Origin: | China | Brand Name: | TYM |
|---|---|---|---|
| Certification: | CE | Model Number: | TYM-L6068 |
|
Detail Information |
|||
| Product Name: | 130T Vertical Silicone Injection Molding Machine | Clamping Force: | 150T |
|---|---|---|---|
| Opening Stroke: | 250-550mm | Injection Rate: | 30gls |
| Tie-bar Space: | 600x680mm | Shot Volume: | 300g |
| High Light: | thermoset injection moulding machine,auto injection molding machine |
||
Product Description

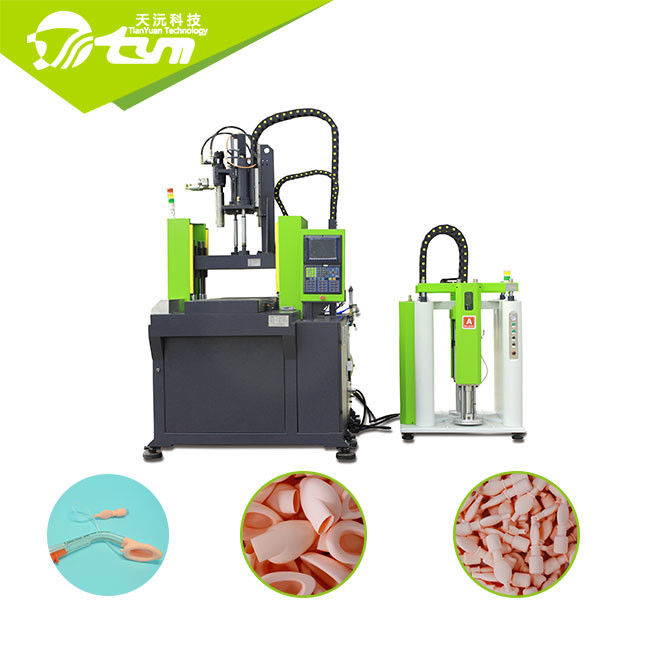

130T Vertical Silicone Injection Molding Machine
The Double-Sliding Board vertical silicone injection machine for the applicable scope:
1) The LSR product is volume-produce, difficult to demould, and will use two moulds to work which will improve productivity.
2) Liquid silicone products, which can with the insert, as like the plastic part, steel part etc. As sample: electric silicone drum Stick, silicone handle, silicone vibrators etc..
3) Liquid silicone medical part, as like the capsule, protective mast, catheter, balloon, medical belt etc.
4) Silicone high-voltage cable accessories,
5) Electronics and industrial product, such as the watchband, mobile phone case, silicone earplug ,valve, O-ring, sealing part, auto parts more.
6) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
The main feature of the vertical LSR molding machine:
A. Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster
and steadier.
B. Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.
C. Meet the requirements on multi-station production.
D. High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.
About TYM
Guangzhou Tianyuan Silicone Machine Technology Co., Ltd. is established in 2002, which specializes in designing and manufacturing the LSR automatic injection molding machine as well as the LSR mold, we mastered the core technology, the quality is excellent! Our production technology is in the leading level in China; we adopt the advanced integration design on our LSR machine, and can supply personalized solutions for the customer. It is more energy-efficient, easy to operate, the production speed is high. TYM LSR machine is your best choice for saving the production cost when you choose a machine.
Vertical Liquid Silicone Rubber (LSR) injection molding machine
Closing the mould downward, two kinds of models can be chose – single sliding board and double sliding board. For double sliding board LSR machine, one upper moldboard and two lower moldboards are installed, which improves the production efficiency. The sliding out structure on the machine makes the production more conveniently and more safely. Also the vertical mould opening and closing is more suitable for producing the overmold (inmold) LSR parts which has inserts.
About Machine
|
The parameter of horizontal lsr injection molding machine TYM-L5058 |
||||||
| Tie-bar space | Ejection Force | Ejection Stroke | Pump Pressure | Machine Weight | Motor Power | Machine Dimension |
| 500*580mm | 4.3T | 150mm | 21Mpa | 5.3T | 12.1KW | 2.4*1.6*3.4m |
Other machine style:
| ITEM | DESCRIPTION | UNIT | TYM-L2428 | TYM-L4048 | TYM-L5058 | TYM-L6068 |
| Injection Unit | Shot Volume | g | 6 | 165 | 165 | 300 |
| Injection Rate | g/s | 30 | 30 | 30 | 30 | |
| Injection Pressure | Kg/cm2 | 700 | 700 | 700 | 700 | |
| Clamping Unit | Clamping Force | T | 50 | 95 | 130 | 150 |
| Opening Stroke | mm | 100-400 | 250-550 | 250-550 | 250-550 | |
| Tie-Bars Space | mm | 240*280 | 400*480 | 500*580 | 600*680 | |
| Ejection Force | T | 4.3 | 4.3 | 4.3 | 4.3 | |
| Ejection Stroke | mm | 150 | 150 | 150 | 150 | |
| Pump Pressure | Mpa | 21 | 21 | 21 | 21 | |
| Others | Motor Power | KW | 12.1 | 12.1 | 12.1 | 21 |
| Machine Weight | T | 2.2 | 4.7 | 5.3 | 5.5 | |
| Machine Dimension | m | 1.4*1.5*3.15 | 2.2*1.5*3.4 | 2.5*1.6*3.4 | 2.7*1.7*3.4 |
About Service
Tianyuan focuses on serving customers for more than ten years. Tianyuan Machinery provides one-year free warranty and lifetime maintenance, so as to avoid your worries in the
production process!
| The professional service from TYM | |
| Pre -sale service |
*Provide investment budget and plant planning; *Provide a whole set of solutions about machine and mold according to products that customers offered. |
| On-sales service | Provide installation and new machine debugging services for users who purchase Tianyuan machine *Free tranning for your staff who can operate and maintain the machine independently in your factory. |
| After-sales service |
*Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems; *After product upgrading, the upgrading work of previous users shall be given priority as required; |
