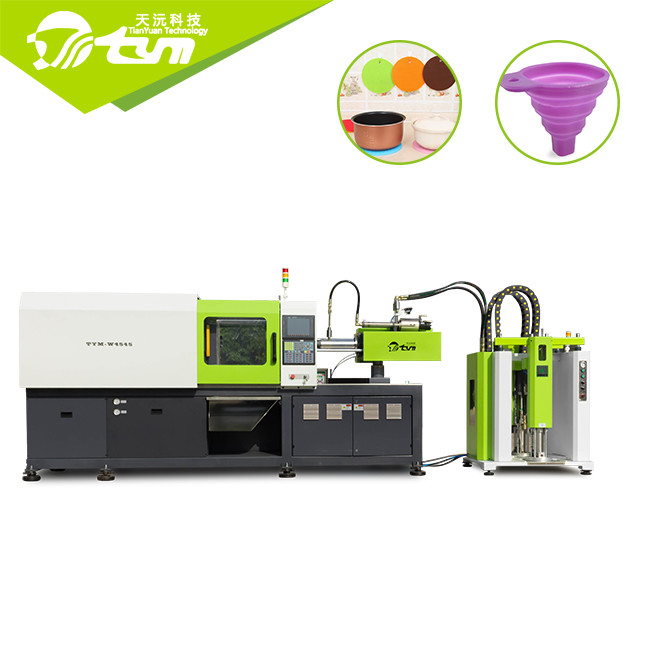

2.4 * 1.6 * 3.4m Liquid Injection Molding Machine 130T Clamping Force Remote Control

Minimum Order Quantity : »1 Price : Negotiation
Packaging Details : wooden case Delivery Time : 45 workdays
Payment Terms : L/C, T/T Supply Ability : 100 set year
Place of Origin: China Brand Name: TYM
Certification: CE/ISO9001 Model Number: TYM4545

Detail Information

Style: Horizontal Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support Automatic: Yes
Injection Rate: 30g/s Clamping Force: 130T
Machine Dimension(l*w*h): 2.4*1.6*3.4m Product Name: Liquid Injection Molding Machine Horizontal Rubber Injection Moulding Machine
Warranty: 1 Year
High Light:

electric injection moulding machine

,

liquid silicone rubber injection molding machine

Product Description

Liquid Injection Molding Machine Horizontal Injection Molding Machine For Sale



Advantage of Horizontal Liquid Injection Molding Machine:

Direct pressure mold opening and closing system. It’s more suitable for producing the LSR parts which can be automatically removed from the mold.

Newly-optimized integrated all-in-one design.

Meet multiple requirements on the automatic manufacturing technique for LSR products.

Shorter the mould closing and opening time,improve the production efficiency.

Remote control function.

Multi-section mould closing and opening and injection, adjusting speed steplessly.



2.4 * 1.6 * 3.4m Liquid Injection Molding Machine 130T Clamping Force Remote Control 0



Machine Model Parameter



Machine Model Shot Volume Injection Rate Injection Pressure Clamping Force

Opening Stroke

Tie-Bars Force Ejection Force Ejection Stroke Pump Pressure Machine Weight Motor Power Machine Dimension
TYM-W4545 148g 30g/s 700kg/cm2 130T 200-700mm 450*450mm 4.3T 150mm 21Mpa 5.2T 12.1KW 4.0*1.2*1.9m
TYM-W5050 270g 30g/s 700kg/cm2 150T 200-700mm 500*500mm 4.3T 150mm 21Mpa 5.3T 12.1KW 4.2*1.4*1.9m
TYM-W5555 270g 30g/s 700kg/cm2 160T 200-700mm 550*550mm 4.3T 150mm 21Mpa 5.6T 12.1KW 4.5*1.6*2.0m



2.4 * 1.6 * 3.4m Liquid Injection Molding Machine 130T Clamping Force Remote Control 1

2.4 * 1.6 * 3.4m Liquid Injection Molding Machine 130T Clamping Force Remote Control 2

2.4 * 1.6 * 3.4m Liquid Injection Molding Machine 130T Clamping Force Remote Control 3

Our Service & Advantages:
1. Reply your enquiry in 24 working hours.
2. More than 17 years experience to LSR injection molding machine in China.
3. Tianyuan can design the LSR injection molding equipment according to the customer's requirements, provide a whole set of solutions for the LSR equipments.
4. Our LSR injection molding machine is widely used in medical industry, food industry, infant industry , diving industry, insulator industry and other LSR production field.
5. According to the high quality, precise and reliable of the LSR injection molding machine, we help the customer to produce the refined LSR products and price ratio is in high performance in the LSR industry.
6. Welcome OEM and ODM.
